RF Cable LX50CC1

Detalhes do produto

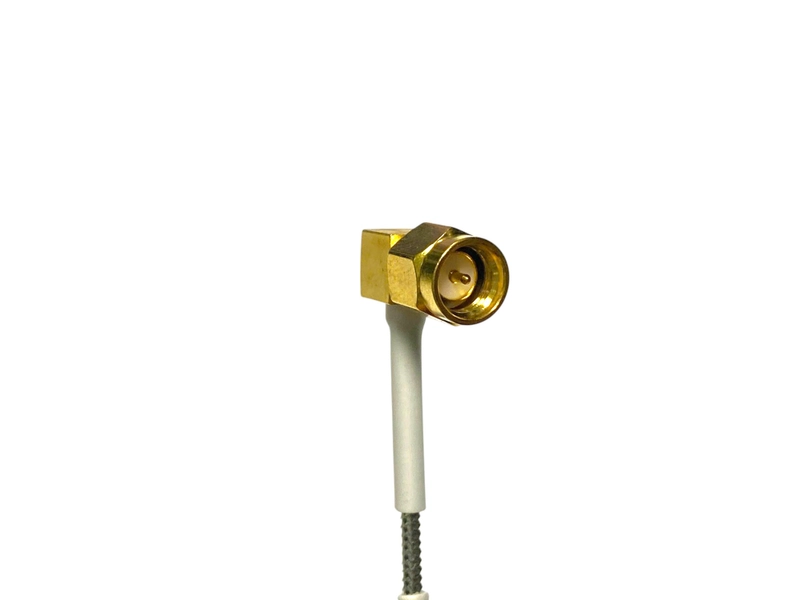

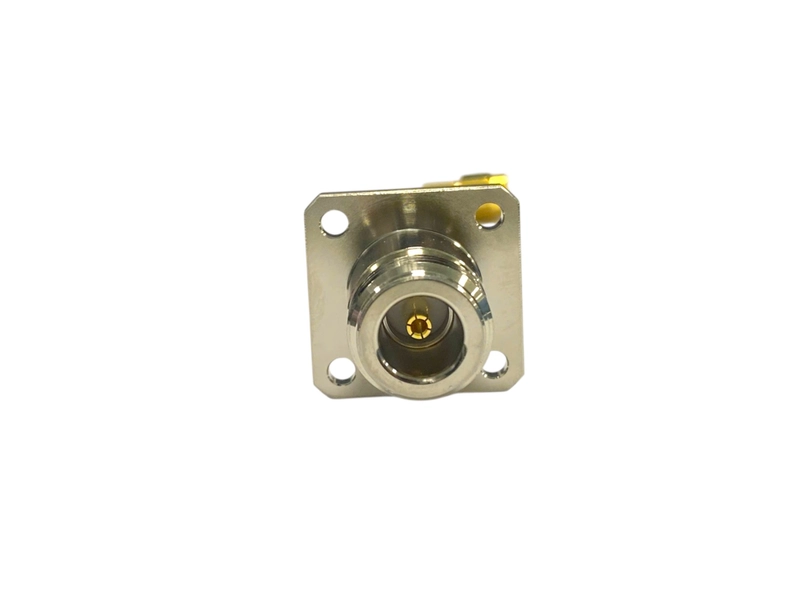

The RF Cable LX50CC1 has a total length of 110mm, consisting of an 85mm SF085 cable connected to N(F) ST and SMA(M) R/A connectors. A 60mm Shrink Tube (White, diameter 4mm) is applied at both ends and in the middle of the cable. Frequency range: DC to 2.45GHz. VSWR(dB): 1.28 : 1 (minus 18dB) @ 0.95GHz to 2.45GHz, 10MHz. Insertion Loss(dB): Max. 1.5dB @ 2.45GHz.
